Jabiru Aircraft accessories 2023 (prices subject to change)
|
Ordering informationEmail to request an interest in a product and I will supply ordering / payment info and availability. No Vat to pay! All prices are plus delivery (delivery included in UK aircraft cover orders only) International orders are no problem and sent by airmail
|
Jabiru Aircraft covers Light weight touring outdoor aircraft covers offer protection from natural pollutants like bird droppings and tree sap, snow and ice,acid rain, industrial pollutants, dust and airborne dirt, ultra-violet radiation, hot sunshine. The aircraft cover is suitable for continuous outdoor use. They are made from a 150D woven textile, proofed with an aluminised finish to reflect ultra-violet sunlight and heat. We control the specification of the proofing to ensure 90% water resistance without losing the breathability. Therefore the cover is breathable. We have not found any fabric/material that achieves the Holy Grail of 100% waterproof (that is totally impervious to water) yet is breathable. It seems to us that this is a contradiction; you can have one or the other, not both. True, there are fabrics that supposedly achieve this when used as outer clothing (e.g. Goretex). The catch is that the breathability is forced by the warmth of the body wearing it; rather difficult with an aircraft cover! Covers for the J400 with 1st and 2nd generation style cowling now available Now available Jabiru SK/UL/SP/ Calypso covers Price on application Also available - indoor cover - similar to photo but dark grey dust proof and less straps Price on application ....................... Prop covers for all Jabiru types with 60" dia props - Padded cover - £80 incl. UK delivery Prices subject to change Now available, non jab prop cover for 72" dia props Vic Leggott UK Distributor FREE delivery in UK ! Prices subject to change Contact me for international deliveries
|
|
||||||
J400 / 430 owners, fed up with broken spats? Try a set of these wheel hub fairings. Painted ready to fit, £79 plus delivery
Note: Jabiru use an AN4-63A bolt on the nose wheel when no spats are fitted. You will need the longer AN4-72A which Jabiru use when spats are fitted. These can be purchased from an aircraft hardware supplier if your plane doesn't already have one. I supply the bolts for the main wheels. Now available for both Four seater and Two seater Jabirus. Note. the ali. stub axle extension for the Jabiru UL, UL-D, Calypso, SK, SPL, has to be reduced in length to accommodate the trim fairing. (I can do this for you) |
|
||||||
Jabiru UL Front spat
Complete spat with hardware, painted, assembled ready to fit (just drill hole for axle and fork leg) Jabiru UL, UL-D, Calypso, SK, SPL Early jab spats came in two halves with a seam longways down the middle. Mine are made in one part both front and rear sections, making them more resilient. Otherwise identical. £198 + delivery ......................................... OR - I can supply this part of a Jabiru front spat that is so easily broken! Front spat, front section only supplied painted but no mounting holes (you drill to match your own) £59 +delivery
|
|
||||||

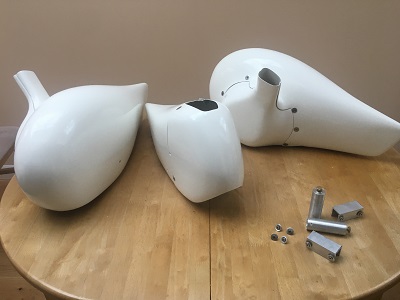

Jabiru SK/UL/SPL front and main spats full set now available - £628 painted incl hardware. plus del. Axle extension tube and ali channel for inner leg attachment available as extra |
|||||||

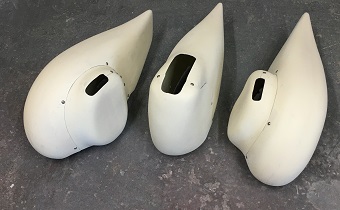

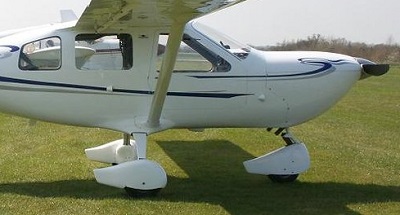

J400/430 full spat set for standard wheels and tyres. Painted ready to fit including hardware. Does not include lower gear leg ali. channel which is available separately. £758 plus del. (UK only) | |||||||
Luscombe Silvaire
spats - fibreglass copies
Supplied Fibreglass spats only in primer no hardware £360 plus delivery
Contact me for more info. |
|||||||
Stainless Steel fairing
attach screws
Screws as used to attach fairings etc. 6g x 1/4" pack of 10 £1.45 + postage 6g x 1/2" pack of 10 £1.65 + postage
|
|||||||
Gear
Leg/strut fairings

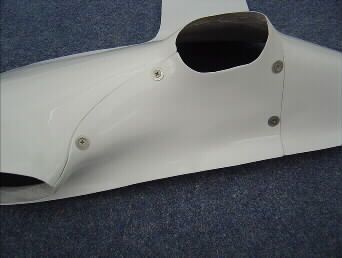

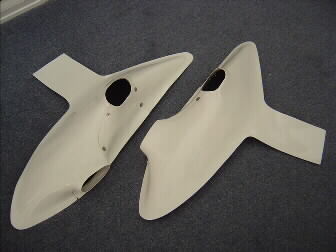

Jabiru UL, UL-D, Calypso, SK, SPL These fairings are no longer available from Jabiru I can supply as shown, painted ready to fit with stainless steel self tapping screws (supplied) Tinnerman washers and stainless machine screws are £15 extra (see photo), otherwise removable part is secured with supplied stainless self tapping screws. £340 + delivery (collect in person recommended) These can also be permanently bonded to the aircraft and inspection hatches cut out. |
|||||||

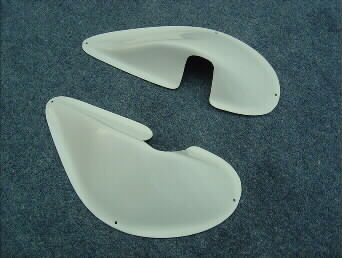

Jabiru strut to wing fairings
These simple fairings are great as they can be positioned to allow for a tie down rope. Later fairings are much larger and in two parts, which conceal the end of the strut. If you want tie down convenience or weight is an issue, these may help. Painted ready to fit with stainless steel screws supplied. £41 / pair + delivery |
|||||||

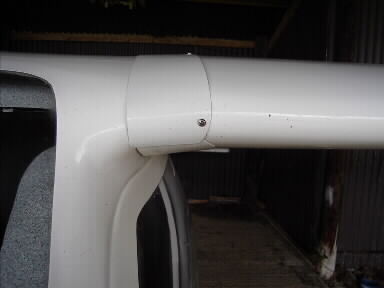

Some early jabs had tape to join the wing gaps. Here is the panel that you can use as per the later design. Supplied with screws if required and cutting template for flap rod. £63 plus delivery |
|||||||

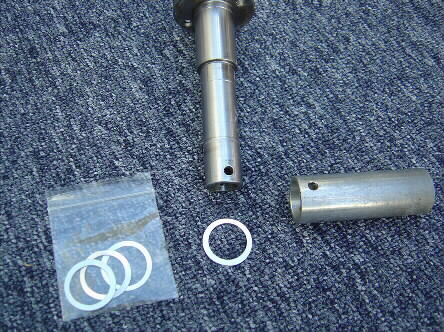

Spacers to eliminate end float on the main axle between axle
extension and wheel bearing. Each 0.4mm thick Noticeable as a 'clonk' as you taxi over uneven ground £13 for a set of 4 +delivery |
|||||||

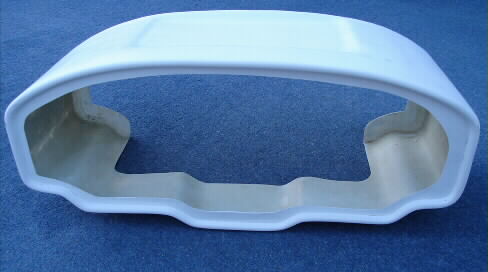

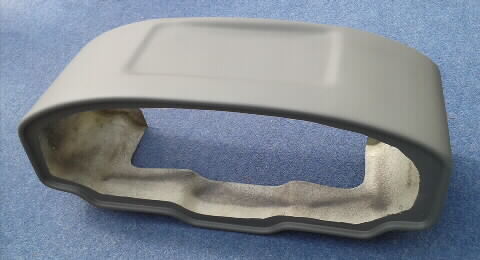

Full width Jabiru Instrument
panel, as fitted to J400/430, J160/170, later Jabiru SP, UL etc

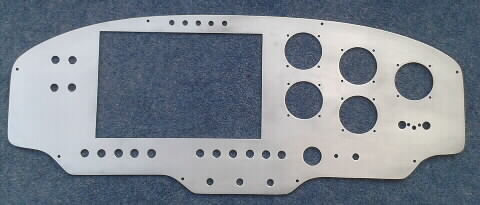

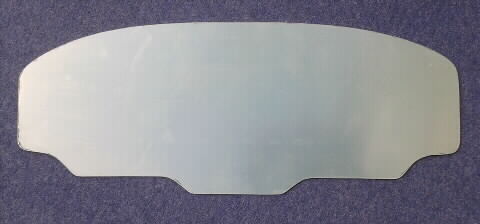

I can now supply the panel as shown above (examples fitted to the right) New price of £355 plus postage for the fibreglass panel surround finished in satin black. I can also supply the aluminum front plate either plain or cut out - see below. Plus all the necessary fittings Email for prices.
Due to the size, unfortunately I can only supply to the UK For examples of panel layouts I've made Click here |
Above: Fitted in a J400 Below: Fitted in a Jabiru SP
|
||||||
New!

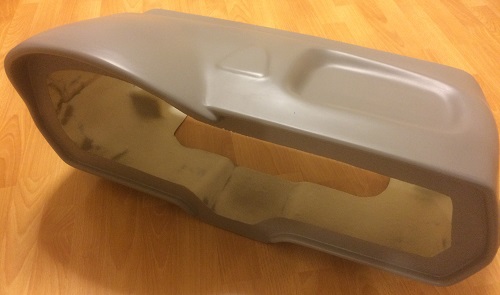

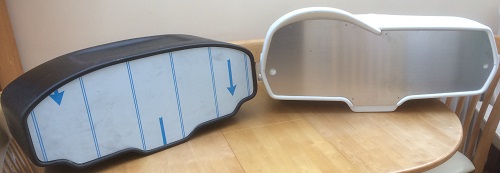

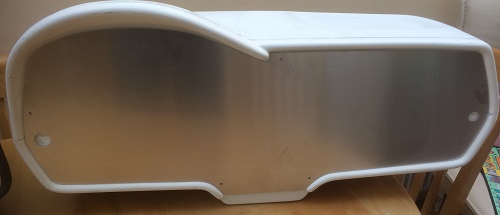

Now available the larger Instrument panel as now fitted to the J430 Supplied painted with firewall fittings and plain aluminum front panel only £399 plus delivery |
|
||||||

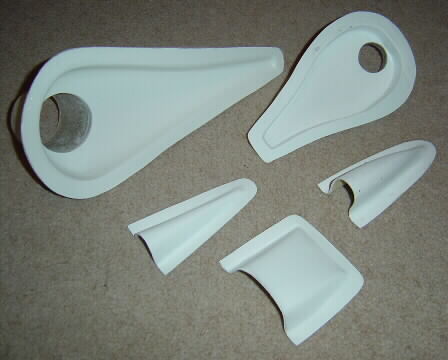

Custom made moldings e.g. naca vents (various sizes and outlet
size options) aileron cable exit fairings, rudder cable exit fairings. Boxes for anything e.g. - in photo, Microair radio
. |
|
||||||

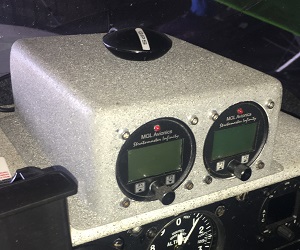

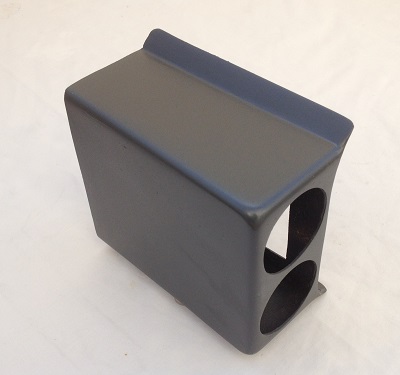

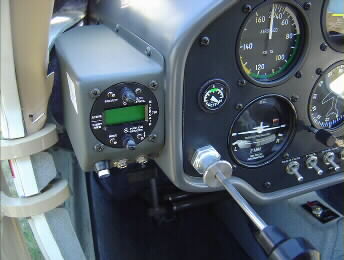

Run out of panel space? Then one of these boxes for a 2" or 2 1/4" round instrument may be the answer. (up to 8" (200mm) long) Custom made to your requirements! Longer lengths available by special request Supplied painted ready for hole to be cut as required Single instrument Price approx £67 plus delivery. -or this one below shaped to fit the side of a full width panel J4xx series or another to fit on top double instrument Price approx £92 plus delivery contact me for an individual quote.
Side mount
Top mount |
Above- side mount with VSI shown
|
||||||

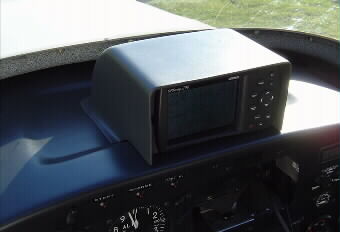

Garmin 196/296/496
on top of panel mounting box, using the 'AirGizmo Mount'
Fibreglass box painted and finished (AirGizmo and GPS not supplied) £155 plus postage |
|||||||

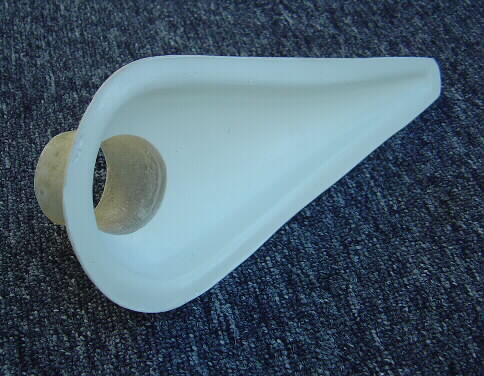

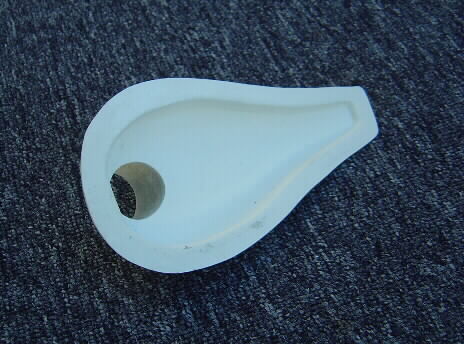

Naca vent 1 Overall length 10" x 41/2" wide Opening when fitted would be 6 1/2" x 3" Out let size made to your choice i.e. 2" , 2 1/4" etc Price £29.50 +delivery |
|||||||
Naca vent 2 Overall length 7" x 3 3/4" wide Opening when fitted would be 4 3/4" x 2 3/4" Out let size made to your choice i.e. 2" , 1 1/2" etc Price £28.50 +delivery
|
|||||||

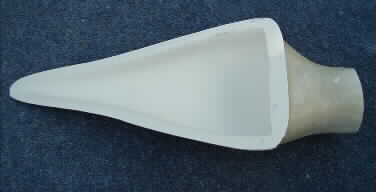

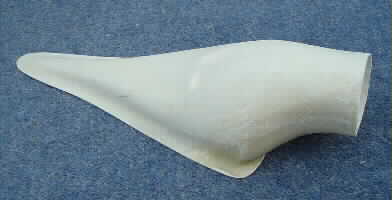

Naca vent
3
Large Naca vent with exit tube 2 1/4" exit Finished in one piece and white gel coat. As used on J400 etc carb air box inlets. Opening approx 9 1/2 " x 4" x 3 " deep Price £45.50 +delivery
|
|
||||||
Naca vent 2 with exit tube and eyeball. Tube length can be cut as required. |
|
||||||
Use modified eyeball vents to finish off inside £43 each |
|||||||

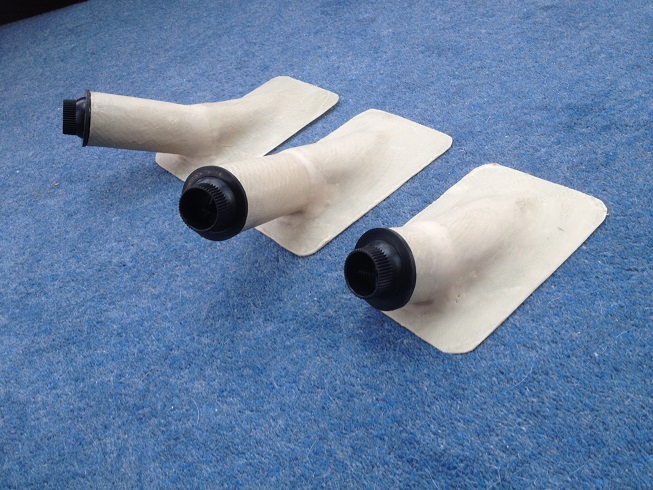

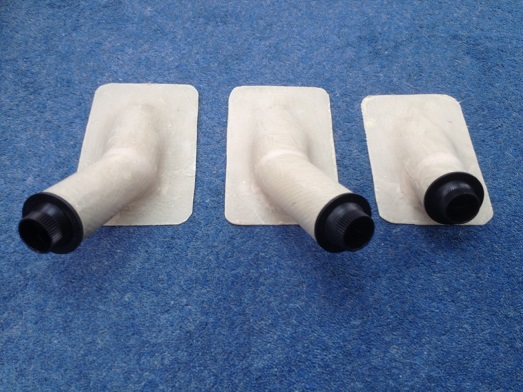

NEW !! Moldings with eyeball vent to cover the Jabiru sliding type factory supplied vent opening. Retain the air scoops on the outside but have the benefit of the eyeball adjustable vent on the inside. These can be fitted over the slide vent or remove the slide vent for a better fit. The duct tube can be cut to length Available as a pair for Two Seaters £119 plus postage Or set of three for 4 Seater Jabirus £161 plus postage |
|||||||

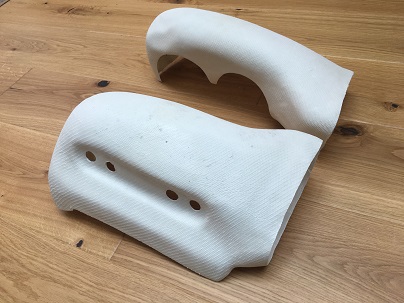

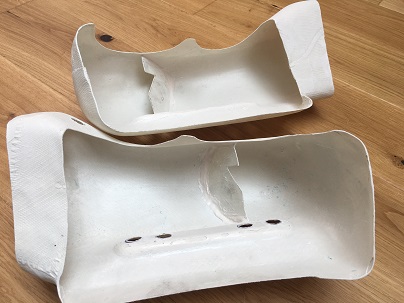

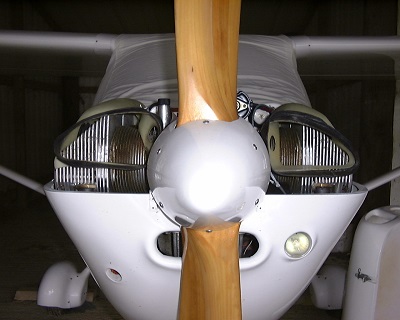

Ram Air ducts for Jab 2200 in Jabiru UL
with the intermediate
larger finned heads - see pic below
Left and right, fibre glass parts only supplied Ram Air ducts £230 a pair plus postage
|
|
||||||

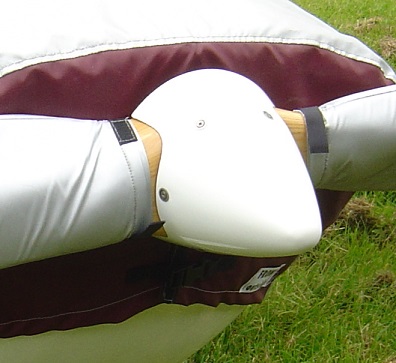

Jabiru 2200 engine, prop spinner and back plate as in photos. Anchor nuts, rivets, tinnerman washers and screws can also be supplied. Spinner £99 incl paint + del Backplate £85 + del |
|||||||

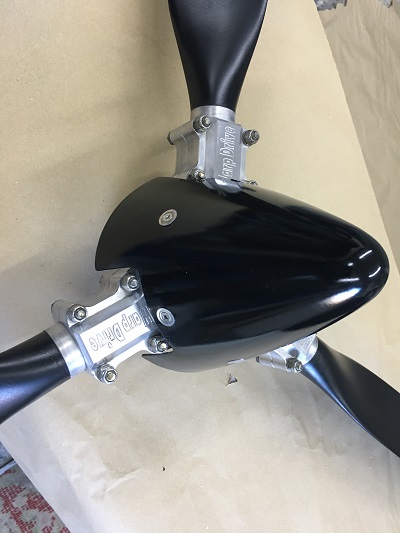

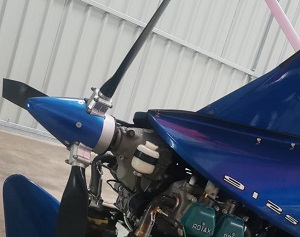

3 blade warp drive spinner and back plate as fitted to Quick 912S Also available for Airplast 3 blade. Available in primer, gloss white, gloss black £164 plus delivery.
|
|||||||

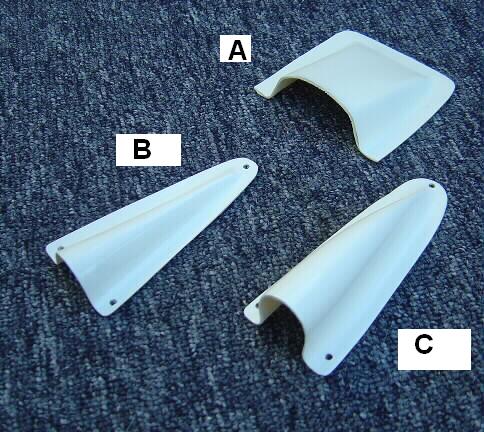

Fairings: A. Cabin heat outlet duct (stops your feet overheating!) Price £15 +delivery
B. Rudder cable exit fairing, supplied painted ready to fit Price £18.50 + delivery
C. Aileron cable exit fairing, supplied painted ready to fit Price £ 28.50 for a pair +delivery
Above supplied with fitting screws . Aileron cable exit cover (type C)

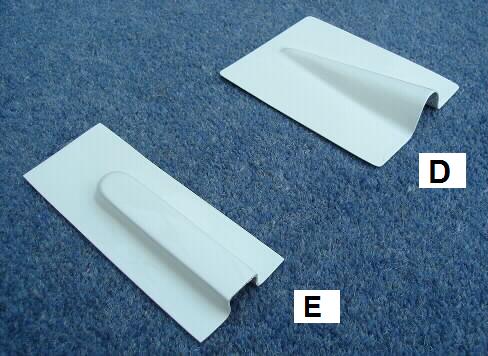

D. Non specific aircraft cable fairing 28mm wide x 18mm deep at front x 104mm long flange approx. 1" Price £19.50 +delivery
E. Non specific aircraft pulley fairing inside measurements 15mm wide x 12mm deep x95mm long Flange approx. 1" Price £19.50 +delivery
|
|
||||||

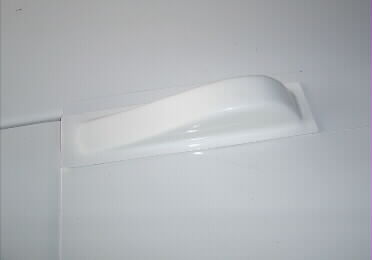

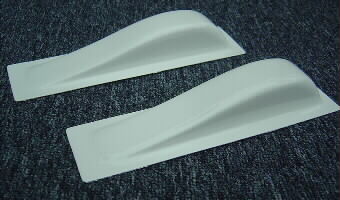

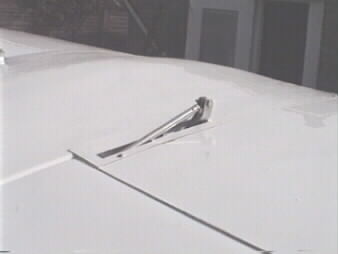

Jabiru UL, UL-D, Calypso, SK, SPL flap arm fairings Supplied painted with fixing screws Price £55.50 / pair plus delivery
|
Before.... After.....
|
||||||
Gear leg underside
screw on 'fairing sections' where the gear leg clamp is, as found on the
J400 / 430. see photo...
These tend to go missing! £27 each, painted, including stainless steel screws - State port or starboard. |
|||||||

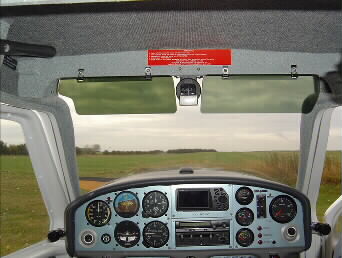

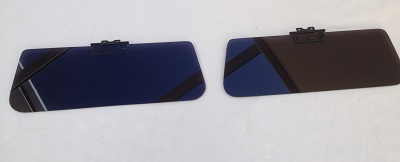

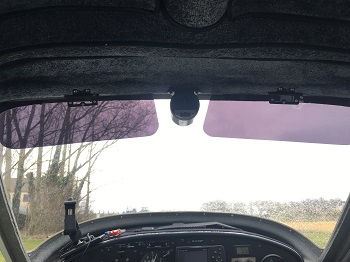

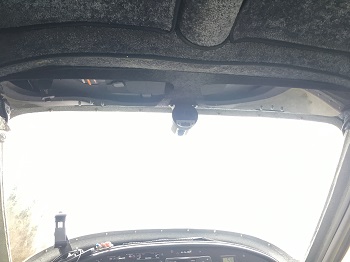

J4xx series Sun Visors - New style- better tint and adjustable hinges
Just the job for the low sun in the winter! Fittings and instructions supplied £48.50 +delivery
Now with new hinge which can be adjusted for tension
|
|
||||||

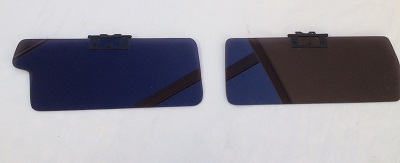

New style Jabiru UL, UL-D, Calypso, SK, SPL Sun Visors - New style- better tint and adjustable hinges Fittings and instructions supplied £48.50 +delivery
Now with new hinge which can be adjusted for tension |
|
||||||

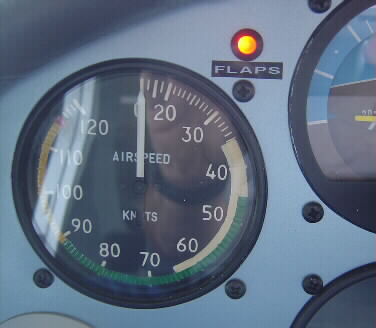

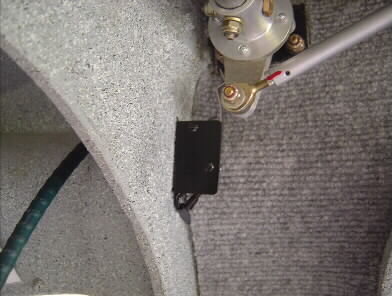

Shows when flaps are anything other than neutral. Fittings, connectors, wiring and bright flashing led with panel insert all supplied £34.50 + delivery
|
|
||||||
LCD
Temperature module
Can be used as a carb temp monitor if attached to the body of the carb or an OAT sensor if fitted elsewhere Temp range -50 deg C to +110 deg C with an accuracy of +/- 1 deg C Powered by 2 LR44 button cells (supplied) Will fit into an opening of 26mm x 45mm Overall dimensions 48mm x 28.6mm x 15.2mm module to sensor tip- 790mm cable length ( I can make any length) Price £10.50 plus postage |
|||||||

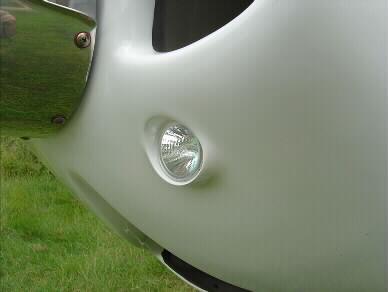

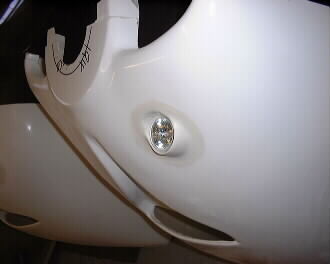

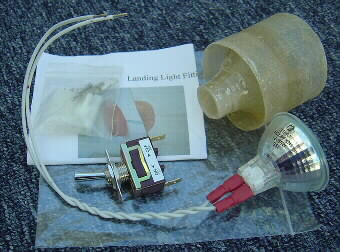

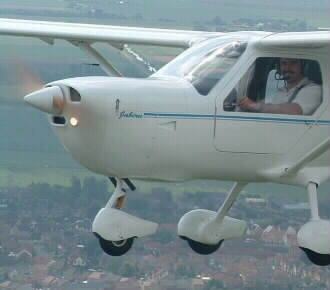

Landing
lights Very bright, be seen for miles. Suitable for all Jabiru types. Cut the hole in the cowl, flock the molding in and fill to blend in. What you get: Instructions Fibre glass molded components Now with super bright SMD chip led lamps 55w equivalent Connector and switch. £54 +delivery |
.
|
||||||
Non Jabiru aircraft Very bright, be seen for miles. Suitable for aircraft with a flat or nearly flat underside to the cowl. Different angle of lamp position available. Fitted to Skyranger and Zenair, would also fit Eurostar etc What you get: Fibre glass molded lamp unit, painted white ready to fit SMD chip led lamps 55w equivalent already fitted Quick release Connector, stainless steel attach screws and nuts £69.50 +delivery
|
|
||||||
|
|||||||
Your
Jabiru dealer or relevant body should be contacted before any
modifications or changes are carried out to the aircraft kit or engines.
This could affect your warranty or insurance cover. Please ask before reproducing material from this site, thank you. V.R.Leggott |
.
